It is most commonly used in truck scales and tank and hopper applications.

Single ended shear beam load cell working.

Shear beam load cells offer excellent stability in the case of lateral forces. Showing 1 12 of 15 results. The shear beam capacities are from 100kg to 50t. The preferred name in load cell technologies.

Sbs 5kse single ended shear beam ntep 165 00. These load cells are found in many conveyor scales container scales and platform scales for medium weights as well as in packaging and bottling plants. The load cell should be mounted on a flat smooth surface with high strength hardened bolts. Single ended shear beam double ended shear beam s beam s type single point canister and disk load cell planar load pin load button and tension link.

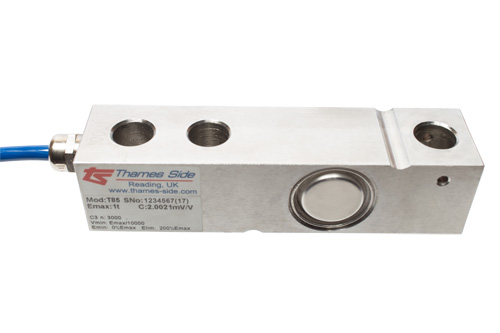

One end of the shear beam contains the mounting holes while the opposite end is where the cell is loaded. Artech industries load cell manufacturer in usa provides a variety of high quality precise load cell products including single ended beam load cells. The double ended shear beam characteristics are similar to those of the single ended shear beam. Sbs 500 single ended shear beam 165 00.

However secondary effects can impact the measurement result. Sbs 250 single ended shear beam 165 00. Sbs 2 5ke single ended shear beam ntep 165 00. The single ended shear beam is designed for low profile scale and process applications.

For long beams two cells at the end are used. Double shear beam load cells are used to measure compressive forces. Applications of shear beam load cell single endet shear beams are primarily used for medium loads up to about 5 tons. If the force can be concentrated to a single point small scale sensing ropes tensile loads point loads a single cell can be used.

Sbsb 10k ss single ended. In double shear beam load cells the force acts on the centre of the device. Vertical cylinders can be measured at three points rectangular objects usually require four sensors. Group four engineers can customize its single ended beams to meet your exacting needs where fit limitations are present and high performance is needed.

Hence the electrical signal that is proportional to the applied load is independent of the load application point. Double ended shear beam load cells. Group four engineers used its single ended load cell design with corner adjusted technology to solve the calibration problem not only for initial set up but also for future replacements. Working principle of double shear beam load cell.

Instead of being secured at one end and load applied to the other end as in the single ended shear beam the double ended shear beam is. This type of load cell is a variation of the shear beam load cell normally rated for higher loads. Shear strains do not vary when the load application point moves within a certain range.
